9.53 * 20 BWG Stainless Steel Coiled Tubing For Oil Transparent 1.4404 / 1.4301

9.53 * 20 BWG Stainless Steel Coiled Tubing For Oil Transparent 1.4404 / 1.4301
9.53 * 20 BWG Stainless Steel Coiled Tubing For Oil Transparent 1.4404 / 1.4301 9.53 * 20 BWG Stainless Steel Coiled Tubing For Oil Transparent 1.4404 / 1.4301

9.53 * 20 BWG Stainless Steel Coiled Tubing For Oil Transparent 1.4404 / 1.4301

รายละเอียดสินค้า:
Place of Origin: CHINA
ชื่อแบรนด์: MTSCO
ได้รับการรับรอง: ISO 9001 & PED & AD2000
Model Number: MTSCOSSCT31
การชำระเงิน:
Minimum Order Quantity: negotiable
ราคา: 5500-10000USD/TON
Packaging Details: Iron Case / Plywood Case
Delivery Time: 30 Days
Payment Terms: T / T ; L / C
Supply Ability: 300 Tons / Month
ติดต่อตอนนี้

ข้อมูลรายละเอียด
Material: 1.4404 / 1.4301 Standard: ASTM A269 / ASTM A213 / ASTM A312 Etc
Delivery Condition: Soft / Hard Every Coil: About 30Kgs Per / Coil
Type: Seamless Surface: Bright Annealed / Pickled
แสงสูง:

stainless steel coil pipe

,

coiled stainless tube

รายละเอียดสินค้า

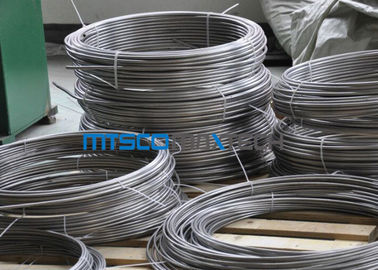

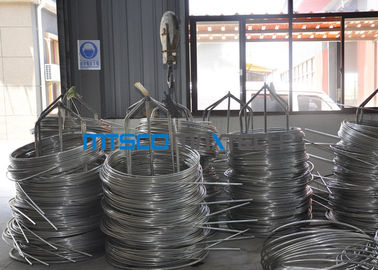

1.4404 / 1.4301 Size 9.53*20 BWG Stainelss Steel Coiled Tube For Oil And Gas



Chemical Composition



  C(max) Si(max) Mn(max) P(max) S(max) Cr Ni Mo Ti
TP304/1.4301 0.080 1.00 2.00 0.045 0.030 18.0-20.0 8.0-10.5
TP304L/1.4307 0.035 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP304H/1.4948 0.04-0.10 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP316/1.4401 0.080 1.00 2.00 0.045 0.030 16.0-18.0 11.0-14.0 2.0-3.0
TP316L/1.4404 0.035 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0
TP316Ti/1.4571 0.080 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0 0.7>5x(C+N)
TP321/1.4541 0.080 1.00 2.00 0.045 0.030 17.0-19.0 9.0-12.0   0.7>5x(C+N)
TP317L/1.4449 0.080 1.00 2.00 0.045 0.030 18.0-20.0 11.0-14.0 3.0-4.0
TP347H/1.4912 0.04-0.10 1.00 2.00 0.045 0.030 17.0-19.0 9.0-13.0
TP309S/1.4833 0.080 1.00 2.00 0.045 0.030 22.0-24.0 12.0-15.0 0.75
TP310S/1.4845 0.080 1.00 2.00 0.045 0.030 24.0-26.0 19.0-22.0 0.75





Where the coiled tubing used ?

1 . Control tubing in oil and gas well
2 . Instrument tubing
3 . Chemicl injection tubing line
4 . Pre-insulated tubing
5 . Electric heating or steam heating tubing line
6 . Hater tubing line





Birmingham Wire Gauge BWG
　 Wall Thickness 　 Wall Thickness
BWG IN MM BWG IN MM
0 0.340 8.64 19 0.042 1.07
1 0.300 7.62 20 0.035 0.89
2 0.284 7.21 21 0.032 0.81
3 0.259 6.58 22 0.028 0.71
4 0.238 6.05 23 0.025 0.64
5 0.220 5.59 24 0.022 0.56
6 0.203 5.16 25 0.020 0.51
7 0.180 4.57 26 0.018 0.46
8 0.165 4.19 27 0.016 0.41
9 0.148 3.76 28 0.014 0.36
10 0.134 3.40 29 0.013 0.33
11 0.120 3.05 30 0.012 0.30
12 0.109 2.77 31 0.010 0.25
13 0.095 2.41 32 0.009 0.23
14 0.083 2.11 33 0.008 0.20
15 0.072 1.83 34 0.007 0.18
16 0.065 1.65 35 0.005 0.13
17 0.058 1.47 36 0.004 0.10
18 0.049 1.24 　 　 　



9.53 * 20 BWG Stainless Steel Coiled Tubing For Oil Transparent 1.4404 / 1.4301 0



MTSCO is a leading manufacturer who is specialized in seamless coiled tubing produce . Stainless steel seamless coiled tubing final surface is bright annealed. According to standard very strictly, tubes which produced by us always have correct OD and WT tolerance. They are very popular in military, semiconductor, pharmaceutical biotechnology, precision instruments, hydraulic parts, chemicals industry, boilers and heat exchangers, aerospace industry, automotive industry, electronics, petroleum exploration, precision machinery, rail transportation, shipbuilding plants, air-conditioning industry, solar industry, water heater industry etc. They can be used in many others industries also .
