20SWG 0.71mm WT Stainless Steel Hydualic Tubing With Polished Surface For Fluid

Minimum Order Quantity : negotiable ราคา : 4300-9800USD/TON
Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA ชื่อแบรนด์: MTSCO
ได้รับการรับรอง: ISO 9001 & PED & AD2000 Model Number: MTSCOHT29

ข้อมูลรายละเอียด

Material: TP304 , TP316 Surface: Polished 400 #
Type: Seamless NDT: Eddy Current Or Hydraulic Test
Inspection: 100% Technology: Cold Drawn
แสงสูง:

Hydraulic Seamless Tube

,

hydraulic tube

รายละเอียดสินค้า

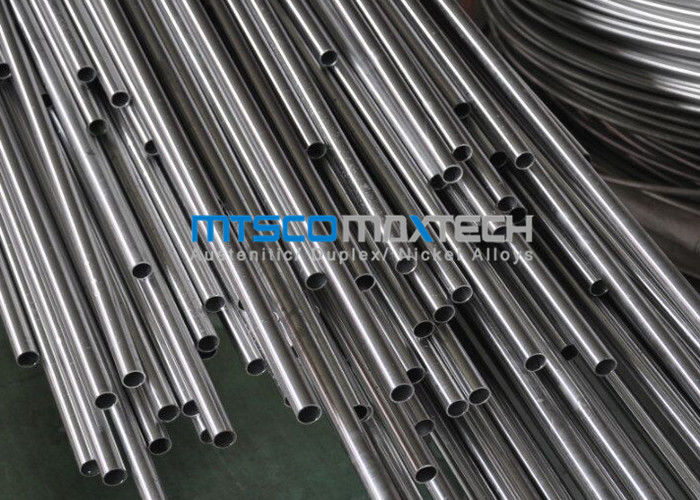

20SWG 0.71mm WT Stainless Steel Hydualic Tubing With Cold Rolled In Oil And Gas


Grade 304 , 304L , 304H , 310S , 316 , 316L , 316Ti , 321 , 321H , 347 , 347H , etc
Standard ASTM A270 ; ASTM A269 ; ASTM A312 ;ASTM A249 ; EN10216-5 , ect .
Size OD : 3.18 - 101.6mm
WT : 0.5 - 20mm
Length : 1m to 12m or as per customers’ requirement
Advantage Superior surface finish ,better mechanical property; more precise dimension; perfect inspection method and inspection equipment



Applications :



1 . General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear )

2 . Fluid , gas and oil transport

3 . Pressure and heat transmission

4 . Construction and ornament

5 . Boiler heat exchangers

6 . Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium ) boiler , auto parts , medical equipment , building materials , food industry





Specification :











Size

OD : 3.18 - 101.6mm

WT : 0.5 - 20mm

Length : >1000Meters

4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm

6 * 1mm / 6 * 1.5mm

6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm

7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm

9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm

10 * 1mm / 10 * 1.5mm

12 * 1mm / 12 * 1.5mm / 12 * 2mm

12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm

14 * 1mm / 14 * 1.5mm / 14 * 2mm

15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm

16 * 1mm / 16 * 1.5mm / 16 * 2mm

19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm

25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm



Stanard Wire Gauge ( Fomerly Imperial Wire Gauge ) SWG
SWG Wall Thickness SWG Wall Thickness
0 0.324 8.23 21 0.032 0.81
1 0.3 7.62 22 0.028 0.71
2 0.276 7.01 23 0.024 0.61
3 0.252 6.4 24 0.022 0.56
4 0.232 5.89 25 0.02 0.51
5 0.212 5.38 26 0.018 0.46
6 0.192 4.88 27 0.0164 0.42
7 0.176 4.47 28 0.0148 0.38
8 0.16 4.06 29 0.0136 0.35
9 0.144 3.66 30 0.0124 0.31
10 0.128 3.25 31 0.0116 0.29
11 0.116 2.95 32 0.0108 0.27
12 0.104 2.64 33 0.01 0.25
13 0.092 2.34 34 0.0092 0.23
14 0.08 2.03 35 0.0084 0.21
15 0.072 1.83 36 0.0076 0.19
16 0.064 1.63 37 0.0068 0.17
17 0.056 1.42 38 0.006 0.15
18 0.048 1.22 39 0.0052 0.13
19 0.04 1.02 40 0.0048 0.12
20 0.036 0.91





20SWG 0.71mm WT Stainless Steel Hydualic Tubing With Polished Surface For Fluid 0
