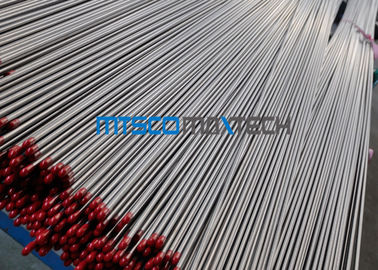

S31600 / S31603 High Pressure Stainless Steel Seamless Tube 1 Inch For Fluid / Gas Transport

S31600 / S31603 High Pressure Stainless Steel Seamless Tube 1 Inch For Fluid / Gas Transport
S31600 / S31603 High Pressure Stainless Steel Seamless Tube 1 Inch For Fluid / Gas Transport S31600 / S31603 High Pressure Stainless Steel Seamless Tube 1 Inch For Fluid / Gas Transport S31600 / S31603 High Pressure Stainless Steel Seamless Tube 1 Inch For Fluid / Gas Transport S31600 / S31603 High Pressure Stainless Steel Seamless Tube 1 Inch For Fluid / Gas Transport

S31600 / S31603 High Pressure Stainless Steel Seamless Tube 1 Inch For Fluid / Gas Transport

รายละเอียดสินค้า:
Place of Origin: CHINA
ชื่อแบรนด์: MTSCO
ได้รับการรับรอง: ISO 9001 & PED & AD2000
Model Number: MTSCOSSST42
การชำระเงิน:
Minimum Order Quantity: negotiable
ราคา: 4300-9800USD/TON

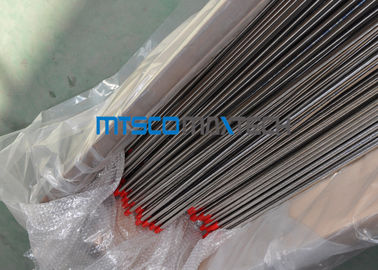

Packaging Details: Iron Case / Plywood Case
Delivery Time: 30 Days
Payment Terms: T / T ; L / C
Supply Ability: 300 Tons / Month
ติดต่อตอนนี้

ข้อมูลรายละเอียด
Material: 300 Series Standard: ASTM A269
Condition: Soft Heat Treatment: Annealing
Test: Eddy Current & Hydraulic Test Surface: Pickling
แสงสูง:

ss Seamless Tubing

,

ss seamless tube

รายละเอียดสินค้า

1 Inch S31600 / S31603 High Pressure Stainless Steel Seamless Tubing With Bright Annealed Surface







Item Description
Basic Information Material Grade TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , S31803 , S32750 , S32205 etc
Outer Diameter 3.18-101.6mm
Wall Thickness 0.5-20mm
Length Normally fixed length 6m , can as per customer’s requirement
Standard ASTM A213 ; ASTM A269 ; ASTM A312 ; ASTM A789 ; ASTM A790 ect .
Process Method Cold Drawn or Cold Rolled
Industry & Advantage Application a) For fluid & gas transport
b) Structure & machining
c) Petrochemical
d) Environmental protection
e) Electricity
f) Instrument industry etc
Advantages a) Superior surface finish
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment



Specifications :



DN NPS(Inch) D(mm) SCH5S SCH10S SCH40S STD SCH40 SCH80 XS SCH80S SCH160 XXS
6 1/8 10.30 - 1.24 1.73 1.73 1.73 2.41 2.41 2.41 - -
8 1/4 13.70 - 1.65 2.24 2.24 2.24 3.02 3.02 3.02 - -
10 3/8 17.10 - 1.65 2.31 2.31 2.31 3.20 3.20 3.20 - -
15 1/2 21.30 1.65 2.11 2.77 2.77 2.77 3.73 3.73 3.73 4.78 7.47
20 3/4 26.70 1.65 2.11 2.87 2.87 2.87 3.91 3.91 3.91 5.56 7.82
25 1 33.40 1.65 2.77 3.38 3.38 3.38 4.55 4.55 4.55 6.35 9.09
32 1 1/4 42.20 1.65 2.77 3.56 3.56 3.56 4.85 4.85 4.85 6.35 9.70
40 1 1/2 48.30 1.65 2.77 3.68 3.68 3.68 5.08 5.08 5.08 7.14 10.15
50 2 60.30 1.65 2.77 3.91 3.91 3.91 5.54 5.54 5.54 8.74 11.07
65 2 1/2 73.00 2.11 3.05 5.16 5.16 5.16 7.01 7.01 7.01 9.53 14.02
80 3 88.90 2.11 3.05 5.49 5.49 5.49 7.62 7.62 7.62 11.13 15.24
90 3 1/2 101.60 2.11 3.05 5.74 5.74 5.74 8.08 8.08 8.08 - -
100 4 114.30 2.11 3.05 6.02 6.02 6.02 8.56 8.56 8.56 13.49 17.12
125 5 141.30 2.77 3.40 6.55 6.55 6.55 9.53 9.53 9.53 15.88 19.05
150 6 168.30 2.77 3.40 7.11 7.11 7.11 10.97 10.97 10.97 18.26 21.95
200 8 219.10 2.77 3.76 8.18 8.18 8.18 12.70 12.70 12.70 23.01 22.23
250 10 273.10 3.40 4.19 9.27 9.27 9.27 15.09 12.70 12.70 28.58 25.40



ASTM A269 STANDARD :



Elements 304L(wt%) S30403 316L (wt%) S31603 316 (wt%) S31600
(C) Carbon, max 0.035 0.035 0.08
(Mn) Manganese, max 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03
(Si) Silicon, max 1 1 1
(Ni) Nickel 8.0 - 12.0 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum N/A 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal. Bal.
(Cu) Copper N/A N/A N/A
(N) Nitrogen N/A N/A N/A





S31600 / S31603 High Pressure Stainless Steel Seamless Tube 1 Inch For Fluid / Gas Transport 0
