TP304L S30403 รอยเชื่อมเดี่ยว SS ม้วนท่อเคมีอุตสาหกรรม
รายละเอียดสินค้า:
|
|
Place of Origin: | CHINA |
---|---|
ชื่อแบรนด์: | MTSCO |
ได้รับการรับรอง: | ISO 9001 & PED & AD2000 |
Model Number: | MTSCOSSCT49 |
การชำระเงิน:
|
|
Minimum Order Quantity: | negotiable |
ราคา: | 5500-10000USD/TON |
Packaging Details: | Iron Case |
Delivery Time: | 30 Days |
Payment Terms: | T / T ; L / C |
Supply Ability: | 300 Tons / Month |
ข้อมูลรายละเอียด |
|||
Material: | 300 Series | Technology: | Cold rolled |
---|---|---|---|
Condition: | Soft / Hard | Test: | 100 % Hydraulic Test |
Length: | 100 m / coil | ||
แสงสูง: | stainless steel coil pipe,seamless stainless steel pipe |
รายละเอียดสินค้า

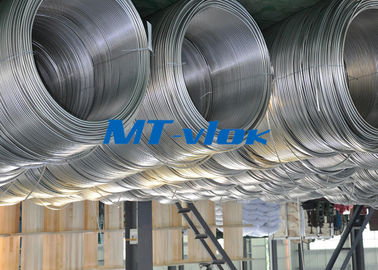

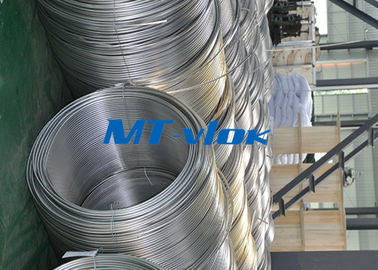

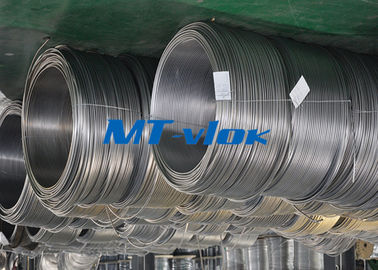

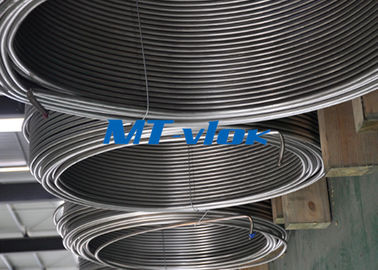

TP316 / 316L Stainless Steel Welded Super Long Coiled Tube For Petrochemical Industry
Where the coiled tubing used ?
1 . Control tubing in oil and gas well
2 . Instrument tubing
3 . Chemicl injection tubing line
4 . Pre-insulated tubing
5 . Electric heating or steam heating tubing line
6 . Hater tubing line
C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti | |
TP304/1.4301 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10.5 | ||
TP304L/1.4307 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
TP304H/1.4948 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
TP316/1.4401 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |
TP316L/1.4404 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
TP316Ti/1.4571 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.7>5x(C+N) |
TP321/1.4541 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-12.0 | 0.7>5x(C+N) | |
TP317L/1.4449 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 11.0-14.0 | 3.0-4.0 | |
TP347H/1.4912 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-13.0 | ||
TP309S/1.4833 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 22.0-24.0 | 12.0-15.0 | 0.75 | |
TP310S/1.4845 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 24.0-26.0 | 19.0-22.0 | 0.75 |
Application
a) For fluid & gas transport
b) Structure & machining
c) Petrochemical
d) Environmental protection
e) Electricity
f) Instrument industry etc
Advantages
a) Superior surface finish
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment
Specifications :
DN | NPS(Inch) | D(mm) | SCH5S | SCH10S | SCH40S | STD | SCH40 | SCH80 | XS | SCH80S | SCH160 | XXS |
6 | 1/8 | 10.30 | - | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | - | - |
8 | 1/4 | 13.70 | - | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | - | - |
10 | 3/8 | 17.10 | - | 1.65 | 2.31 | 2.31 | 2.31 | 3.20 | 3.20 | 3.20 | - | - |
15 | 1/2 | 21.30 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 |
20 | 3/4 | 26.70 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 |
25 | 1 | 33.40 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 |
32 | 1 1/4 | 42.20 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.70 |
40 | 1 1/2 | 48.30 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 |
50 | 2 | 60.30 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 |
65 | 2 1/2 | 73.00 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 |
80 | 3 | 88.90 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 |
90 | 3 1/2 | 101.60 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | - | - |
100 | 4 | 114.30 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 13.49 | 17.12 |
125 | 5 | 141.30 | 2.77 | 3.40 | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 | 9.53 | 15.88 | 19.05 |
150 | 6 | 168.30 | 2.77 | 3.40 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 18.26 | 21.95 |
200 | 8 | 219.10 | 2.77 | 3.76 | 8.18 | 8.18 | 8.18 | 12.70 | 12.70 | 12.70 | 23.01 | 22.23 |
250 | 10 | 273.10 | 3.40 | 4.19 | 9.27 | 9.27 | 9.27 | 15.09 | 12.70 | 12.70 | 28.58 | 25.40 |
