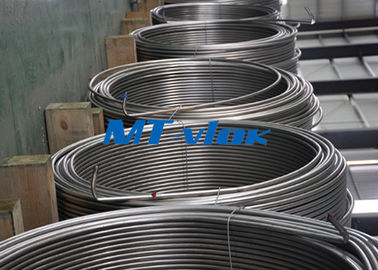

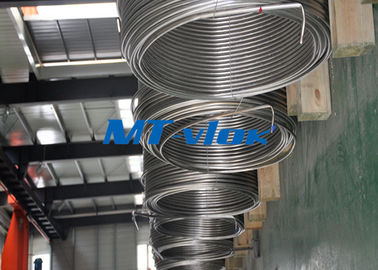

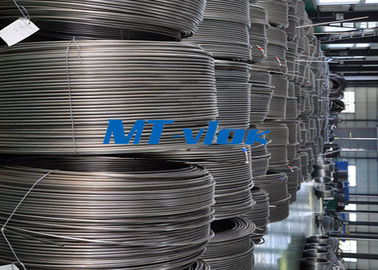

1 / 8 Inch TP304 / 304L Stainless Steel Coiled Tubing Coil Steel Tube For Food Industry

Minimum Order Quantity : negotiable ราคา : 5500-10000USD/TON
Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin : CHINA ชื่อแบรนด์ : MTSCO
ได้รับการรับรอง : ISO 9001 & PED & AD2000 Model Number : MTSCOSSCT50

ข้อมูลรายละเอียด

Material: TP304 / 304L Standard: ASTM A269 / ASTM A213 Etc
Delivery Condition: Soft / Hard Every Coil: About 30Kgs Per / Coil
Type: Seamless Surface: Bright Annealed / Pickled

รายละเอียดสินค้า

1 / 8 Inch TP304 / 304L Stainless Steel Welded Super Long Coiled Tube For Food Industry




Material Grade :


American Standard TP304 , TP304L , TP310S , TP316 , TP316L , TP316Ti , TP321 , TP347 , 904L Etc
European Standard 1.4301 , 1.4306 , 1.4845 , 1.4401 , 1.4404 , 1.4571 , 1.4541 , 1.4550 , 1.4539 Etc
German Standard

X5CrNi18-10 , X2CrNi19-11 , X12CrNi25-21 , X5CrNi17-12-2 , X5CrNi17-12-3 , X2CrNiMo18-14-3 , X6CrNiTi18-10 , X6CrNiTb18-10 Etc





Specifications :



DN NPS(Inch) D(mm) SCH5S SCH10S SCH40S STD SCH40 SCH80 XS SCH80S SCH160 XXS
6 1/8 10.30 - 1.24 1.73 1.73 1.73 2.41 2.41 2.41 - -
8 1/4 13.70 - 1.65 2.24 2.24 2.24 3.02 3.02 3.02 - -
10 3/8 17.10 - 1.65 2.31 2.31 2.31 3.20 3.20 3.20 - -
15 1/2 21.30 1.65 2.11 2.77 2.77 2.77 3.73 3.73 3.73 4.78 7.47
20 3/4 26.70 1.65 2.11 2.87 2.87 2.87 3.91 3.91 3.91 5.56 7.82
25 1 33.40 1.65 2.77 3.38 3.38 3.38 4.55 4.55 4.55 6.35 9.09
32 1 1/4 42.20 1.65 2.77 3.56 3.56 3.56 4.85 4.85 4.85 6.35 9.70
40 1 1/2 48.30 1.65 2.77 3.68 3.68 3.68 5.08 5.08 5.08 7.14 10.15
50 2 60.30 1.65 2.77 3.91 3.91 3.91 5.54 5.54 5.54 8.74 11.07
65 2 1/2 73.00 2.11 3.05 5.16 5.16 5.16 7.01 7.01 7.01 9.53 14.02
80 3 88.90 2.11 3.05 5.49 5.49 5.49 7.62 7.62 7.62 11.13 15.24
90 3 1/2 101.60 2.11 3.05 5.74 5.74 5.74 8.08 8.08 8.08 - -
100 4 114.30 2.11 3.05 6.02 6.02 6.02 8.56 8.56 8.56 13.49 17.12
125 5 141.30 2.77 3.40 6.55 6.55 6.55 9.53 9.53 9.53 15.88 19.05
150 6 168.30 2.77 3.40 7.11 7.11 7.11 10.97 10.97 10.97 18.26 21.95
200 8 219.10 2.77 3.76 8.18 8.18 8.18 12.70 12.70 12.70 23.01 22.23
250 10 273.10 3.40 4.19 9.27 9.27 9.27 15.09 12.70 12.70 28.58 25.40

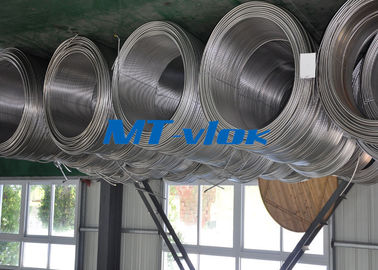

1 / 8 Inch TP304 / 304L Stainless Steel Coiled Tubing Coil Steel Tube For Food Industry




Chemical Composition :



Material ASTM A269 Chemical Composition % Max
C Mn P S Si Cr Ni Mo N B Nb Ti
TP304 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0 ^ ^ ^. ^
TP304L 0.035 2 0.045 0.03 1 18.0-20.0 8.0-12.0 ^ ^ ^ ^
TP316 0.08 2 0.045 0.03 1 16.0-18.0 10.0-14.0 2.00-3.00 ^ ^ ^
TP316L 0.035 D 2 0.045 0.03 1 16.0-18.0 10.0-15.0 2.00-3.00 ^ ^ ^
TP321 0.08 2 0.045 0.03 1 17.0-19.0 9.0-12.0 ^ ^ ^ 5C -0.70
TP347 0.08 2 0.045 0.03 1 17.0-19.0 9.0-12.0     10C -1.10 ^



Size OD : 4.76 - 25.4mm
WT : 0.71 - 2.11mm
Length : >1000Meters
4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm
6 * 1mm / 6 * 1.5mm
6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm
7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm
9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm
10 * 1mm / 10 * 1.5mm
12 * 1mm / 12 * 1.5mm / 12 * 2mm
12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm
14 * 1mm / 14 * 1.5mm / 14 * 2mm
15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm
16 * 1mm / 16 * 1.5mm / 16 * 2mm
19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm

25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm
