ASTM A182 / ASME SA182 PN250 F316 /316L Stainless Steel Pipe Fittings Forged Slip On Flange
ASTM A182 / ASME SA182 PN250 F316 /316L Stainless Steel Pipe Fittings Forged Slip On Flange ASTM A182 / ASME SA182 PN250 F316 /316L Stainless Steel Pipe Fittings Forged Slip On Flange ASTM A182 / ASME SA182 PN250 F316 /316L Stainless Steel Pipe Fittings Forged Slip On Flange
ติดต่อตอนนี้

ASTM A182 / ASME SA182 PN250 F316 /316L Stainless Steel Pipe Fittings Forged Slip On Flange

Minimum Order Quantity : negotiable ราคา : 6000-17000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA ชื่อแบรนด์: MTSCO
ได้รับการรับรอง: ISO 9001 & PED & AD2000 Model Number: MTSCOFPF61

ข้อมูลรายละเอียด
Material: F316 / 316L Type: PLRF
Package: Plywood case PMI: 100%
Standard: DIN2628
เน้น:

Stainless Steel Pipe Fitting

,

Stainless Steel Flange

รายละเอียดสินค้า

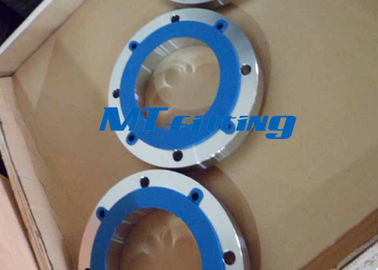

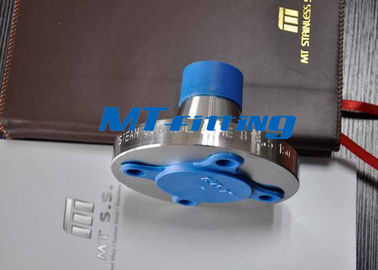

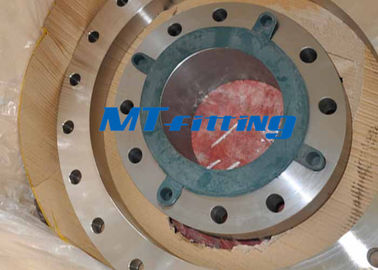

ASTM A182 / ASME SA182 PN250 F316 /316L Stainless Steel Forged Slip On Flange


1. Material Grade:WP304 , WP304L , WP304H , WP316 , WP316L , WP316Ti , WP309S , WP310S , WP321 , WP321H , WP347 , WP347H , F304 , F304L , F304H , F316 , F316L , F310S , F321 etc
2. Size: 1/2" to 48" Sch 5S to XXS
3. Standard: ASTM A403, ASTM A182 etc .
4. Process Method: Forged / Casting


1 . Commodity : Welding Neck , Blind , Slip On , Lap Joint , Socket Weld , Threaded , Spectacle Blind , etc
2 . Surfacing : RF , FF , RTJ
3 . Materials : Stainless Steel , Duplex Steel , etc
4 . Standards : ANSI B16.5 , ANSI B 16.47
5 . Tolerances : according to the specification or customer’s request and drawings
6 . Applications : Pipe connection , Piping project construction etc
7 . Pressure class : PN20-PN420



1 . Commodity : Welding Neck , Blind , Slip On , Lap Joint , Socket Weld , Threaded , Spectacle Blind , etc
2 . Surfacing : RF , FF , RTJ
3 . Materials : Stainless Steel , Duplex Steel , etc
4 . Standards : ANSI B16.5 , ANSI B 16.47
5 . Tolerances : according to the specification or customer’s request and drawings
6 . Applications : Pipe connection , Piping project construction etc

ASTM A182 / ASME SA182 PN250 F316 /316L Stainless Steel Pipe Fittings Forged Slip On Flange 0


ASTM A182 / A182M Standard Chemical Composition :


Elements304L(wt%) / F304L / S30403304(wt%) / F340 / S30400316L (wt%) / F316L /S31603316 (wt%) / F316 / S31600310 (wt%) / F310 / S31000
(C) Carbon, max0.030.080.030.080.25
(Mn) Manganese, max22222
(P) Phosphorus, max0.0450.0450.0450.0450.045
(S) Sulfur, max0.030.030.030.030.03
(Si) Silicon, max11111
(Ni) Nickel8.0 - 13.08.0 - 11.010.0 - 15.010.0 - 14.019.0 - 22.0
(Cr) Chromium18.0 - 20.018.0 - 20.016.0 - 18.016.0 - 18.024.0 - 26.0
(Mo) MolybdenumN/AN/A2.0 - 3.02.0 - 3.0N/A
(Fe) IronN/AN/AN/AN/AN/A
(Cu) CopperN/AN/AN/AN/AN/A
(N) NitrogenN/AN/AN/AN/AN/A
