ASTM A790 / A789 F51 / F53 Annealed / Pickled Duplex Steel Seamless Pipe

Minimum Order Quantity : negotiable ราคา : 5000-9000USD/TON
Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin : CHINA ชื่อแบรนด์ : MTSCO
ได้รับการรับรอง : ISO 9001 & PED & AD2000 Model Number : MTSCODSP40

ข้อมูลรายละเอียด

Material: F51 / F53/1.4410 / S32750 / 2507 / 1.4462 / S31803 / 2205 / Etc Type: Seamless
Ends: PE / BE Standard: ASTM A790 / SA790 ; ASTM A789 / SA789 ; ASTM A312 Etc
NDT: Eddy Current Or Hydraulic Test Delivery Condition: Soft / Hard

รายละเอียดสินค้า

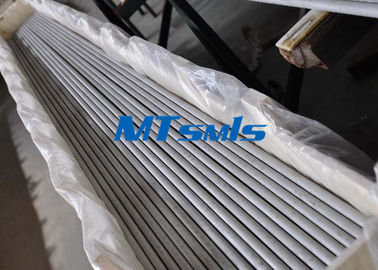

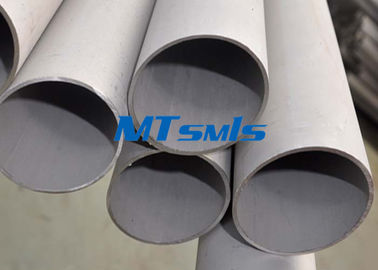

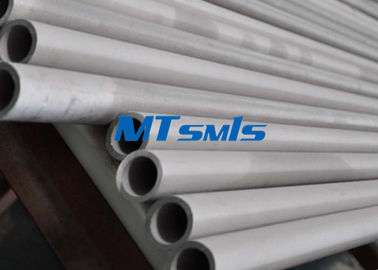

ASTM A790 / A789 F51 / F53 Annealed & Pickled Duplex Steel Seamless Pipe







UNS Designation C Si Mn P S Cr Ni Mo N Cu
 max max max max max
S31803 ( F51 ) 0.03 1 2 0.03 0.02 21.0 - 23.0 4.5 - 6.5 2.5 - 3.5 0.08 - 0.20 -
S32205 ( F60 ) 0.03 1 2 0.03 0.02 22.0 - 23.0 4.5 - 6.5 3.0 - 3.5 0.14 - 0.20 -
S32750 ( F53 ) 0.03 0.8 1.2 0.035 0.02 24.0 - 26.0 6.0 - 8.0 3.0 - 5.0 0.24 - 0.32 0.5 max
S32760 ( F55 ) 0.05 1 1 0.03 0.01 24.0 - 26.0 6.0 - 8.0 3.0 - 4.0 0.20 - 0.30 0.50 -1.00



  Duplex stainless steel that was developed to combat common corrosion problems encountered with the 300 series

stainless steels . “ Duplex ” describes a family of stainless steels that are neither fully austenitic , like 304 stainless , nor purely ferritic , like 430 stainless . The advantage of a duplex structure is that it combines the favorable qualities of a ferritic alloy ( stress corrosion cracking resistance and high strength ) with those of an austenitic alloy ( ease of fabrication and corrosion resistance ) .



Material Grade  S32205 , S31803 , S32304 , S32750, F51 , F53 , 2205 , 2507 etc
Outer Diameter

10.3mm - 1219mm

Wall Thickness

1.24mm - 54.59mm

Length as per customer’s requirement
Standard

ASTM A789 ; ASTM A790 ; EN 10216-5ect .



ASTM A790 / A789 F51 / F53 Annealed / Pickled Duplex Steel Seamless Pipe



Application

a) Petroleum

b) Chemical industry

c) Instrument

d) Industrial transportation

e) Mechanical structure industry

f) Need high corrision ability pipe's industry, such as offshore industry etc



Advantages

a) Superior surface finish,

b) Better mechanical property

c) More precise dimension

d) Perfect inspection method and inspection equipment



Price Item FOB, CFR, CIF or as negotiation

Payment T/T, LC or as negotiation

Delivery Time 30 working days after received your deposit (Normally according to the order quantity)

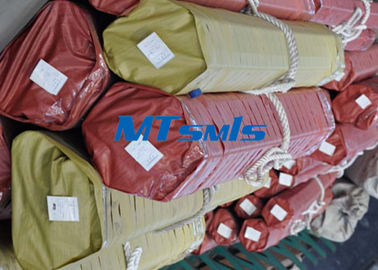

Package Iron case; woven bag or as per customer’s requirement

Requirement Mill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable

Quality Test NTD(Ultrasonic test, Eddy Current test);

Mechanical Test(Tension Test, Flaring Test, Flattening Test, Hardness Test, Hydraulic test);

Metal Test(Metallographic Analysis, Impact Test-High/low temperature);

Chemical Analysis(Photoelectric Emission Spectroscopic)

Main Market Europe, Middle East, Southeast Asia, South America. Etc
